50 Cd Obstruction lights

The Dialight 860 50cd obstruction light is designed to meet specific European specifications where the standard 32cd output is not enough. Based on the same design as the standard, this range of lights carry the same 5 year warranty and stil benefit from low power consumption.

Approvals

Compliant to ICAO (Annex 14, July 2004)

Operating Conditions

• Temperatures ranging from -67°F to +131°F (-55°C to +55°C).
• Will withstand wind in excess of 150 mph (240 kph),
• Salt Fog, high humidity

Materials

• Cast aluminum housing and
• stainless steel fixings
• Glass lens (not susceptible to UV degradation)

Photometric Data

50 Candelas between 5° and 10° above the horizontal axis.

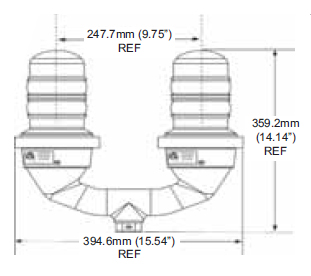

Mechanical Dimensions



Ordering Information

Weights & Measurements

Electrical Specifications
