20.000 Cd Red/White Dual Beacon

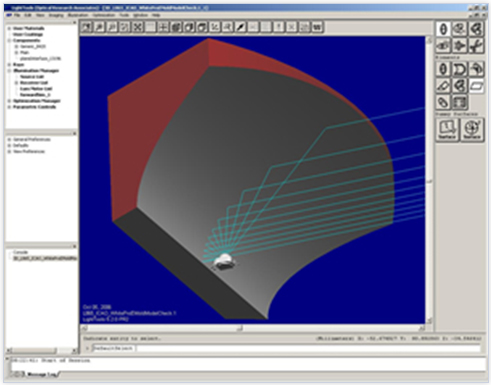

The Dialight D265 is the first production medium intensity Red/White Beacon, utilising state of the art optics. With the use of a simple controller, the D265 will provide over 20,000cd white in the day and 2,000 cd red at night. The D265 also has a default to 2,000cd white if desired. Our unique passive temperature management system maintains the LEDs well within their temperature tolerance in all operating conditions. The D265 has a microprocessor controlled driver and a default flash mode in the event of a loss of communication with the controller.

Features and Benefits

• 20,000 cd Nominal daytime white and 2,000 cd Night time red.
• 170 cd red available to meet German W red specification.
• Designed to replace Dual Xenon Strobe units, FAA type L865/L864 and ICAO Medium Intensity Type A/B
• 5 Year performance warranty
• Resistant to shock and vibration
• Universal 100-240 VAC input 50/60Hz
• Innovative Temperature Management System (TMS) to insure longevity of LEDs.
• Can withstand 150Mph wind.

Specifications

• Operating Voltage: 110- 240VAC +/- 10% 50-60Hz
• Power Consumption: 300W Continuous @ 40 fpm (Daytime), 35W Continuous @ 40 fpm (Night time)
• Lightsource: LEDs - 5 year warranty
• Effective Intensity: 20,000Cd white +/- 25% in daytime mode, 2,000cd red +/- 25% in nighttime mode (170cd red to meet Wred spec is available for nighttime mode)
• Operating Temperature: -40°C to +50°C
• Lightning Protection: 6KV 3000 amps combination wave.
• Flash Rate: 20 - 40 fpm
• Synchronisation: 2 unit sync from single controller GPS option for global synchronisation.

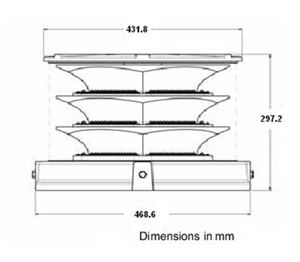

Mechanical Dimensions

Ordering Information
